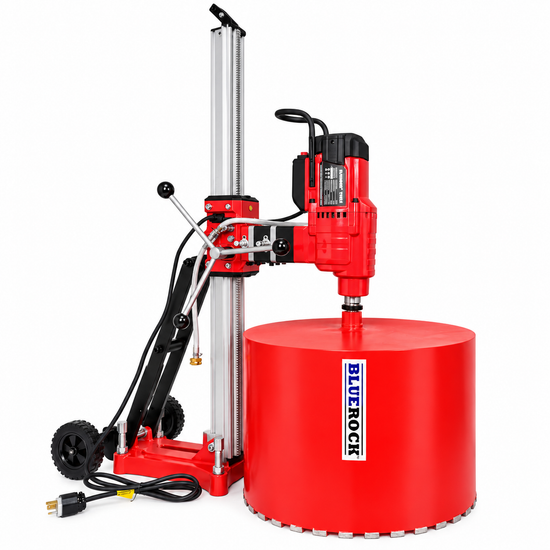

BLUEROCK Model 25Z1 220v Extra Large 25" Capacity Concrete Core Drill w/ Long Stroke Stand & Rolling Base
Brand : BLUEROCK TOOLS
$3,595.00
- SKU:
- 25Z1
- UPC:
- 789091582823
- Availability:
- IN STOCK USA! Ships out the same day if ordered by 1PM PST M-F
- Weight:
- 158.00 LBS
- Shipping:
- FREE USA Shipping
BLUEROCK 25Z1 Extra Large 2-SPEED CORE DRILL
OUR BIGGEST, MOST POWERFUL 25" CAPACITY CONCRETE CORE DRILL
WITH LONG STROKE STAND AND ROLLING BASE
Specifications:
- Max Drilling Diameter: 25" (The drill bit pictured is not included in this sale)
- Rated Voltage: 220V
- Rated Frequency: 60Hz, Single Phase
- Rated Input Power: 5000W
- Two Speed: 230/370 RPM
- Gear 1 (230 rpm) for 16"-25" holes, Gear 2 (370 rpm) for 1"-15" holes
- NEMA L6-30P 250V 3-Prong Twist Lock Plug
Structure and Features:
- Visual LED Load % Indicator with Intelligent controller for overload protection
- 2-gear rotary speed is designed for drilling different size holes
- The drill is fitted with an outer regulating safety clutch
- Integrated water hose/ valve with garden hose spigot threaded end for "wet" drilling
- 61" Tall Stand with measured inch and centimeter drilling depths visual
- Horizontal and Vertical bubble levels with corner leveling adjustment bolts on base
- Dual Speed carriage press with a 1:1 standard and 1:3 fine gear handle pressure options
- Left or right side compatible quick disconnect press handle
- Quick Release motor mount for easy installation and transport
- Rugged quality motor carrying case, with wrench set
- Anti-locking ring to prevent bit seizing and easier release
- For concrete, asphalt and masonry drilling. Reinforced concrete with rebar
Measurements:
Stand: 61" Tall
Base Footprint: 19"x14.5" Wide
Front motor to back wheels: 36"
Maximum possible core bit with extensions total length: 42"
Anchor bolt hole: 3/4"
Total shipping weight: 2 Boxes; 84lbs Stand 66"x`12"x18" & 63lbs Motor 10"x26"x20"
NOTE: The 24" drill bit pictured is not included in this sale (although it is for sale in our store). We stock large 12", 14", 16", 18", 20, 22, 24" diameter core bits.
